Planet FGSW-1828PS 16-Port Ethernet Web/Smart PoE Switch

Model # FGSW-1828PS
Planet FGSW-1828PS 16-Port Ethernet Web/Smart PoE Switch
Email a friend Email a friend
Questions about this item? Be the first to ask here. Questions about this item? Be the first to ask here.
Price
Your Price:
$236.00
Availability:
In Stock
Quantity
- or -
Add to Wish List
Description

For cost saving and outlet saving purpose, PLANET releases the new Layer 2 Web Smart Switch with built-in PoE injector function, FGSW-1828PS. Except the Switch architecture designed, the FGSW-1828PS also comply with IEEE 802.3af Power over Ethernet standard and provide PoE power provision feature, the FGSW-1828PS can provide PoE power to 8 IEEE 802.3af compliant devices.

The FGSW-1828PS provide 16 10/100Mbps Fast Ethernet ports with 8 PoE interfaces, the FGSW-1828PS supports MDI / MDI-X convertible on 16-10/100Mbps ports and also provide PoE inject function on port #1 to port #8 which is able to drive 8 IEEE 802.3af compliant powered devices, the FGSW-1828PS also provide two Gigabit Ethernet ports, either TP or SFP per port. The two Gigabit ports either can be 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP (Small Factor Pluggable) interfaces. The distance can be extended from 100 meters (TP), 550 meters (Multi-mode fiber), up to above 10/20/30/40/50/70/120 kilometers (Single-mode fiber).

With its Auto-Negotiation capability, all the RJ-45 / STP ports of FGSW-1828PS Switch can be configured to speeds of 10/20Mbps / 100/200Mbps (Fast Ethernet) or1000/2000Mbps (Gigabit Ethernet) automatically. In addition, the product are equipped with the MDI/MDI-X auto detection for easily plug and play connection, regardless of cabling types-straight through or crossover, the FGSW-1828PS also provides a simple, cost-effective, and highly reliable network connection for data as well as power. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet workgroups and networks, this device is ideal for all kind of the Ethernet installation, such as campus / workgroup / department / enterprise / telecom / industrial application.

The FGSW-1828PS equipped with non-blocking 7.2Gbps backplane, greatly simplifies the tasks of upgrading your LAN for catering to increase bandwidth demands. For efficient management, the FGSW-1828PS Switch is equipped with remote Web interface and can be programmed for advanced switch management functions such as SNMP Alert Trap, port configuration, port-based / IEEE 802.1Q / MTU VLAN, port mirroring, port trunk, QoS, bandwidth control, broadcast storm control, MAC address / TCP & UDP filter and IGMP Snooping v1/v2. Also the PoE Setting, such as PoE power Disable/Enable and PoE power consumption monitoring.

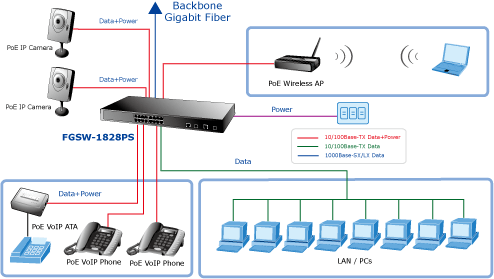

Department / Workgroup PoE Switch
With its 7.2 Gigabits per second, non-blocking switch fabric, the FGSW-1828PS can easily provide a local, high bandwidth, Fast Ethernet network for backbone of users’ departments. With two SFP ports, the FGSW-1828PS provide the uplink to the backbone network through Gigabit Ethernet LX / SX SFP modules.
Providing up to 8 PoE, in-line power interface, the FGSW-1828PS can easily build a power central-controlled IP phone system, IP Camera system, AP group for the enterprise. For instance, 8 camera / AP can be easily installed around the corner in the company for surveillance demands or build a wireless roaming environment in the office.
Without the power-socket limitation, the switch makes the installation of cameras or WLAN AP more easily and efficiently.



Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
 Gigabit Ethernet standard
• 16-Port 10/100Mbps + 2 Gigabit TP / SFP Combo Web Smart PoE Switch
• 8-Port support 48VDC power to PoE Powered Device (Port 1 to port 8)
• Each Switching ports support auto-negotiation-10/20, 100/200Mbps
 (Fast Ethernet) , 1000/2000Mbps (Gigabit Ethernet) supported
• Auto-MDI / MDI-X detection on each RJ-45 port
• Prevents packet loss with back pressure (Half-duplex) and IEEE 802.3x
 PAUSE frame flow control (Full-duplex)
• High performance Store and Forward architecture, broadcast storm control,
 runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth
• 4K MAC address table, automatic source address learning and ageing
• 2.75Mb embedded memory for packet buffers
• Remote Web interface for Switch management and setup
• SNMP Trap for alarm notification of events
• Broadcast Storm Control support
• Supports up to 16 / 18 port-based VLAN groups / 32 IEEE 802.1Q VLAN
 groups / MTU VLAN
• Supports up to 2 Trunk groups, each trunk for up to maximum 4 port with
 800Mbps bandwidth
• Supports QoS , bandwidth control and MAC address filter / TCP & UDP filter
 on each port
• Supports port mirroring function and IGMP Snooping v1 / v2
• PoE power Disable/Enable and PoE power consumption monitoring by management
 interface
• Firmware upgrade through Web interface
• Password setting, IP setting and device description setting through Planet
 Smart discovery utility
• 19-inch rack mount size
• Internal full-range power supply suitable for worldwide use
• EMI standards complies with FCC, CE class A

Hardware Specification

Fast Ethernet Ports

16 10/100Base-TX RJ-45 Auto-MDI / MDI-X ports

Gigabit Ports

2 Gigabit TP / SFP combo interfaces

Power over Ethernet Ports

8-Port with PoE injector function (Port 1 to port 8)

Switch Processing Scheme

Store-and-Forward

Throughput (packet per second)

5.35Mpps.

Switch Fabric

7.2Gbps

Address Table

4K entries

Share Data Buffer

2.75Mb embedded memory for packet buffers

Flow Control

Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex

Dimensions

440 x 120 x 44 mm (1U height)

Weight

2.02 kg

Power Requirement

100-240V AC, 50-60 Hz, 1A

System Operation Power Consumption / Dissipation (Full load)

131 watts / 446.71BTU

Temperature

Operating: 0~50 degree C
Storage: -40~70 degree


Humidity Operating

5% to 90%, Storage: 5% to 90% (Non-condensing)

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet / PSE

PoE Power Supply Type

End-Span

PoE Power Output

Per Port 48V DC, 350mA. Max. 15.4 watts

Power Pin Assignment

1/2(+), 3/6(-)

Power Budget

110 watts

Smart Function

System Configuration

Web interface

Alert Trap

SNMP Trap for alarm notification of events

Port Configuration

Port speed duplex mode selection. Flow control disable / enable. Port disable / enable. Port description on each port

Bandwidth Control

Yes, 1Mbps / 2Mbps / 4Mbps / 8Mbps / 16Mbps / 32Mbps / 64Mbps

Broadcast Storm Control

Yes, 5% / 10% / 25% / 50% / Disable

Port Statistics

Display each port's detail Ethernet traffic counter information

VLAN

16 / 18 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN

Port Trunking

Support 2 groups of 4-Port trunk support, up to 800Mbps bandwidth per trunk

Port Mirroring

Port mirroring allows monitoring of the traffic across any port in real time

QoS

Allow to assign low / high priority on each port.
First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy


MAC Address / TCP & UDP Filter

Yes

IGMP Snooping v1 / v2

Allow to disable or enable

PoE Power Control

Allow to disable or enable power provision and assign priority on each PoE port

Standards Conformance

Regulation Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 Ethernet
IEEE 802.3u Fst Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet
IEEE 802.3x Full-duplex Flow control
IEEE 802.3af Power over Ethernet
IEEE 802.1Q VLAN
IEEE 802.1p QoS
